50 chain plate
●Suitable for conveying long chips (50mm) and round chips.
●Large scope of application.
●Delivery length within 10 meters.
●Chain plate thickness t=2.3mm pitch 31.75mm. |
|
80 chain plate
●Suitable for a large number of chips.
●Chip conveying within 30 meters in total length.
●Chain plate thickness t=3mm pitch 50.8mm. |

|

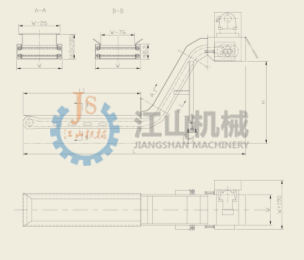

| 50 chain plate |
|

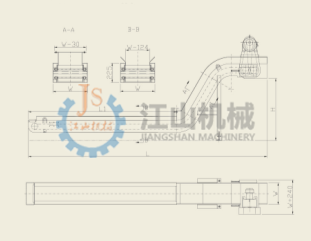

80 chain plate |
 |
|
 |
| |
|
|
| Size of each part |
|
Size of each part |
| W |
250,300,350,400,450,500,550,600 |
| H |
140,165,200 |
| a |
30, 45, 60, 75 |
| H |
a =60:190.9 or more |
| L |
10000 or less |
| L3 |
326.9 or more |
| A |
A>W |
|
|
| W |
250 ~ 300, 350, 400, 450, 500, 550, 600, |
| |
350, a =00 when 300 |
| A |
425, a=00 when 300 |
| α |
45° .60° |
| H |
α=600:300 or more |
| L |
30000 or more |
| L3 |
450 or more |
|
| |
|
|
| 性能 |
|
性能 |
| Geared Motor |
0.2KW 4P AG 220/380V
|
| Chain |
C2052HP pitch 31.75mm
|
| Conveying Rate |
0.9m/min[50Hz],1 .1m/min [60Hz]
|
| Conveying Capacity |
w=300,h=165时 0.24m3/h [50Hz]
0.30m3/h [60Hz] |
| Safety Device |
Forque limiter+approaching switch |
| Scrap Requirements |
Chips with length over 50mm |
Optional Device
|
Electric control box
Coolant recycling device(for high-efficiency
recycling of coolant attached on cutting
scrap)
Oillet type chain plate(where large quantity
of coolant will be used)
Salient point type cl-ffiin plate(to avoid smal
l flaky scrap being attached on chain plate
during the converying period) |
|
|
Geared Motor |
0.4KW 4P AC 220/380V
α=0° L=15000 is not full
0.75KW 4P AC 220/380V
α=45°，60° L=15000 is not full
α=0°
1.5KW 4P AC 220/380V
α=45°，60° L=20000 or more |
| Chain |
C2082HP pitch50.8mm
|
| Conveying Rate |
0.75KW
3.5m/min [50Hz]
4,2m/min [60HZ] |
| Conveying Capacity |
0.75KW α =45° ,W=35°
0.85m3/h [50Hz] |
| Safety Device |
rorque limiter+approaching switch |
| Scrap Requirements |
Chips with length over 50mm |
Optional Device
|
Electric control box
Coolant recycling device(for high
-efficiency recycling of coolant
attached on cutting scrap) |
|
|
