50链板式
●适合长切屑(50mm)和圆形切屑的输送.
●适用范围较大.
●输送长度在10米以内.
●链板厚度t=2.3mm 节距31.75mm. |
|
80链板式
●适合大量切屑.
●全长30米以内的切屑输送.
●链板厚度t=3mm 节距50.8mm. |
|
50链板 |
|
80链板 |
|
|
|
|
|
|

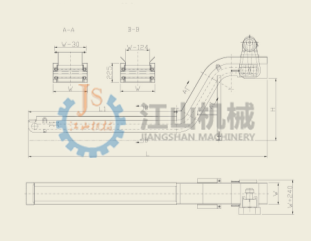

各部位的尺寸 |
|

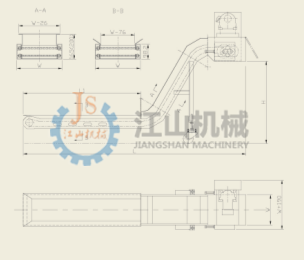

各部位的尺寸 |
W |
250,300,350,400,450,500,550,600 |
H |
140,165,200 |
a |
30, 45, 60, 75 |
H |
a =60时190.9以上 |
L |
10000以下 |
L3 |
326.9以上 |
A |
A>W |
|
|
W |
250 ~ 300, 350, 400, 450, 500, 550, 600, |
|
350, a =00 时300 |
A |
425, a=00 时300 |
α |
45° .60° |
H |
α=600时300以上 |
L |
30000以上 |
L3 |
450以上 |
|
|
|
|
性能 |
|
性能 |
减速电机
Geared Motor |
0.2KW 4P AG 220/380V
|
链条
Chain |
C2052HP 节距31.75mm
|
输送速度
Conveying Rate |
0.9m/min[50Hz],1 .1m/min [60Hz]
|
输送量
Conveying Capacity |
w=300,h=165时 0.24m3/h [50Hz]
0.30m3/h [60Hz] |
安全装置
Safety Device |
扭矩限制器+接近开关
Forque limiter+approaching switch |
切屑要求
Scrap Requirements |
长切屑( 50mm)以上
Chips with length over 50mm |
选配装置
Optional Device
|
电器控制箱
冷却液回收装置(可以把附在切屑上
的冷却
液高效回收使用)

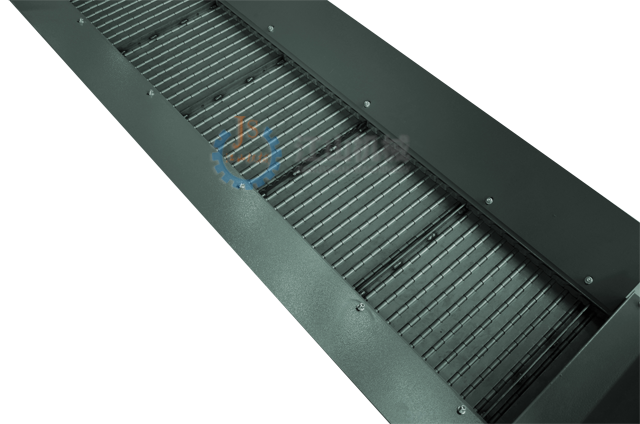

孔眼式链板(冷却液使用量大的场合
使用)
凸点式链板(防止小的片状切屑输送过
程中
粘附在链板上)
Electric control box
Coolant recycling device(for high-efficiency
recycling of coolant attached on cutting
scrap)
Oillet type chain plate(where large quantity
of coolant will be used)
Salient point type cl-ffiin plate(to avoid smal
l flaky scrap being attached on chain plate
during the converying period) |
|
|
减速电机
Geared Motor |
0.4KW 4P AC 220/380V
α=0° L=15000不满
0.75KW 4P AC 220/380V
α=45°,60° L=15000不满
α=0°
1.5KW 4P AC 220/380V
α=45°,60° L=20000以上 |
链条
Chain |
C2082HP节距50.8mm
|
输送速度
Conveying Rate |
0.75KW时
3.5m/min [50Hz]
4,2m/min [60HZ] |
输送量
Conveying Capacity |
0.75KW α =45° ,W=35°
0.85m3/h [50Hz] |
安全装置
Safety Device |
扭距限制器+接近开关
rorque limiter+approaching switch |
切屑要求
Scrap Requirements |
长切屑(50mm以上)
Chips with length over 50mm |
选配装置
Optional Device
|
电器控制箱
冷却液回收装置(可以把附在切屑
上的冷却
液高效回收使用)
Electric control box
Coolant recycling device(for high
-efficiency recycling of coolant
attached on cutting scrap) |
|
|
